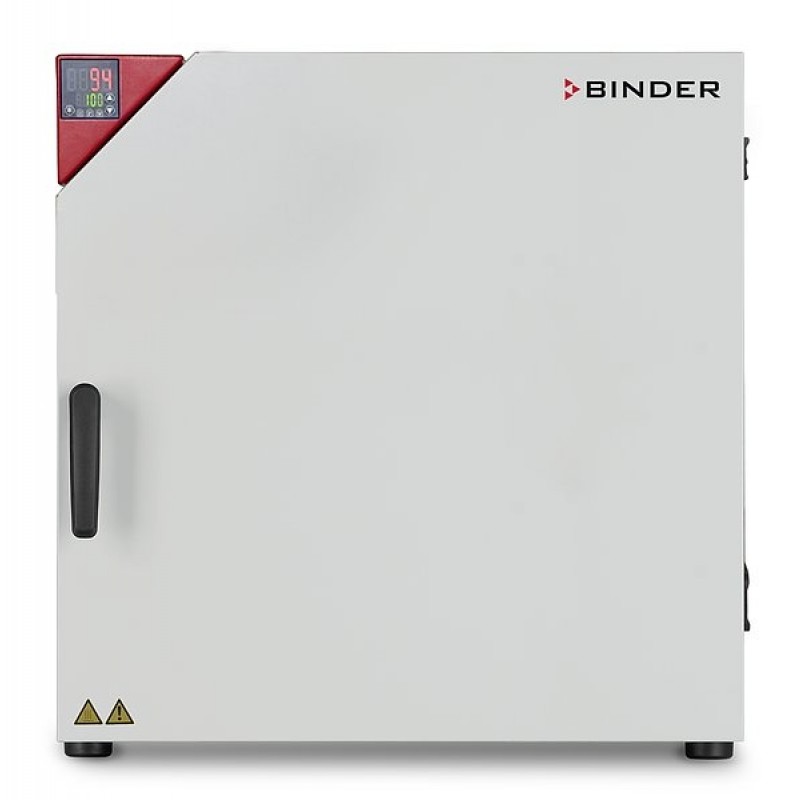

BINDER FDS115UL-120V Series FD-S Solid.Line - Drying And Heating Chambers, With Forced Convection, 9090-0025

Benefits

Easy handling
Accurate temperature control
Simple and ergonomic door opening

Important characteristics

Temperature range: +10 °C above ambient temperature to +250 °C
APT.line™ preheating chamber technology
Forced convection
Adjustable exhaust air flap
Controller with timer function
1 chrome-plated rack, incl. shelf supports
Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm

Technical specifications

Performance Data Temperature:

Heating-up time to 150 °C [min]: 20
Temperature fluctuation at 150 °C [± K]: 0.4
Temperature range +10 °C above ambient temperature to [°C]: 250
Temperature variation at 150 °C [± K]: 2

Air change data

Air change (approx.) at 100 °C [x/h]: 2

Electrical data

Nominal power [kW]: 1.4
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 120
Unit fuse [A]: 6.3

Doors

Unit doors: 1

Housing dimensions not incl. fittings and connections

Depth net [in]: 24.27
Height net [in]: 28.96
Width net [in]: 30.1

Internal Dimensions

Depth [in]: 13.79
Height [in]: 21.67
Width [in]: 21.67

Measures

Interior volume [cu.ft.]: 3.7
Load per rack [lbs]: 44
Net weight of the unit (empty) [lbs]: 106
Permitted load [lbs]: 165
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94

Environment-specific data

Energy consumption at 150 °C [Wh/h]: 340
Sound-pressure level [dB(A)]: 48

Fixtures

Number of shelves (std./max.): 1/5
