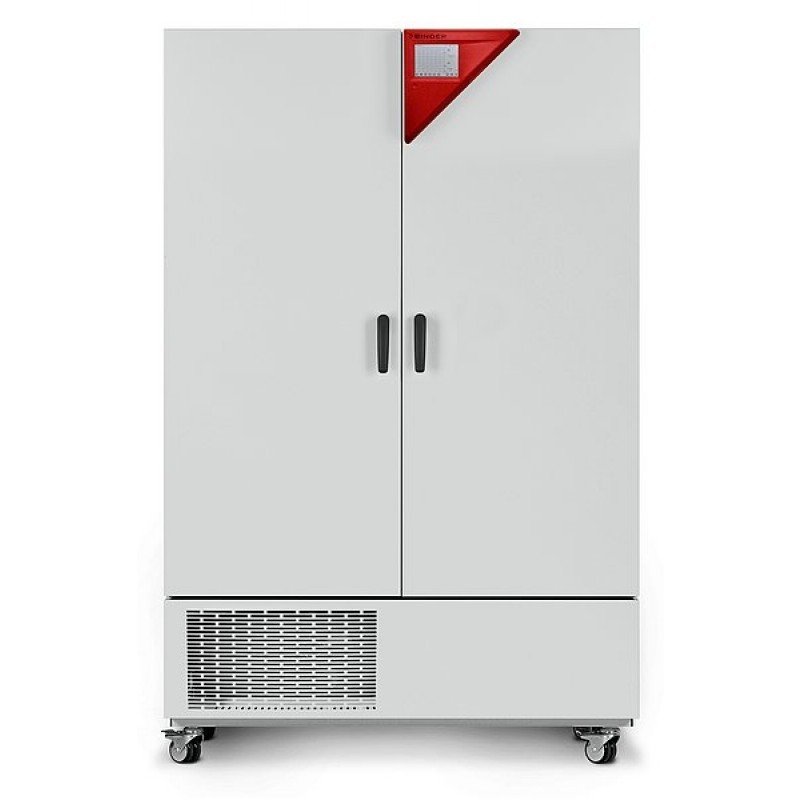

BINDER KBW720-230V Series KBW - Growth Chambers, With Light, 9020-0340

Benefits

Patented lighting system ensures homogeneous light distribution
Flexible positioning of illumination cassettes, three different light spectra, individually selectable
Integrated weekly program in real-time

Important characteristics

Temperature range: 0 °C to 70 °C
Temperature range with light: 5 °C to 60 °C
3 positionable illumination cassettes, each with 5 fluorescent tubes
APT.line™ preheating chamber technology
Adjustable fan speed
Intuitive touchscreen controller with time-segment and real-time programming with internal data recording
Tight-sealing inner door made of safety glass (ESG)
Avoidance of glass corrosion by special TIMELESS coating
3 stainless steel racks
Access port with silicone plug, 30 mm, left
Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
Computer interface: Ethernet
Door heating

Technical specifications

Performance Data Temperature:

Temperature fluctuation with 100% illumination [± K]: 0.1
Temperature fluctuation without illumination cassettes [± K]: 0.1
Temperature range with 100% illumination [°C]: 5…60
Temperature range without illumination cassettes [°C]: 0…70
Temperature variation with 100% illumination [± K]: 1
Temperature variation without illumination cassettes [± K]: 0.5

Lightdata per Illumination Cassettes

Arabidopsis lamps [lx]*: 14000
Arabidopsis lamps [W/m²]*: 43
Daylight tubes [lx]*: 13000
Daylight tubes [W/m²]*: 38
Fluora® growth lamps [lx]*: 10500
Fluora® growth lamps [W/m²]*: 36

Electrical data

Nominal power [kW]: 2.7
Phase (Nominal voltage): 1~
Power frequency [Hz]: 50/60
Rated Voltage [V]: 200…240
Unit fuse [A]: 16

Doors

Inner doors: 2
Unit doors: 2

Housing dimensions not incl. fittings and connections

Depth net [in]: 35.07
Height net [in]: 75.8
Width net [in]: 49.3

Internal dimensions

Depth [in]: 22.69
Height [in]: 49.3
Width [in]: 38.22

Measures

Interior volume [cu.ft.]: 24.6
Load per rack [lbs]: 99
Net weight of the unit (empty) [lbs]: 831
Permitted load [lbs]: 331
Wall clearance back [in]: 3.94
Wall clearance sidewise [in]: 3.94

Environment-specific data

Energy consumption at 37 °C and with illumination [Wh/h]: 880
Sound-pressure level [dB(A)]: 59

Fixtures

Number of illumination cassettes (std./max.): 3/3
Number of shelves (std./max.): 3/12
