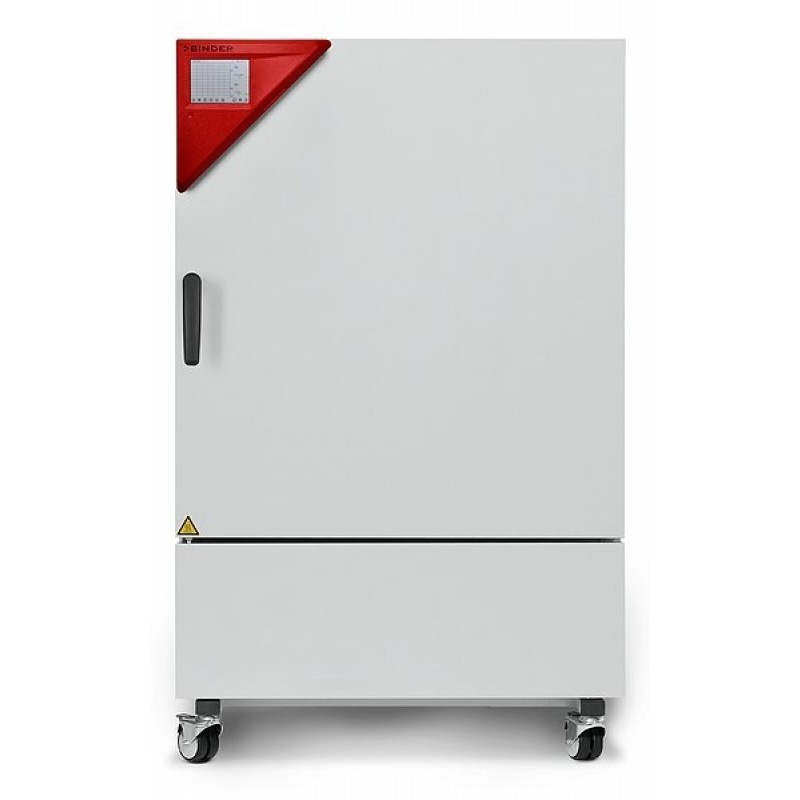

BINDER KBWF240-230V Series KBWF - Growth Chambers, With Light And Humidity, 9020-0336

Benefits

Patented lighting system ensures homogeneous light distribution
Flexible positioning of illumination cassettes, three different light spectra, individually selectable
Pressure humidification with fast response times

Important characteristics

Temperature range: 0 °C to +70 °C
Temperature range with light: +10 °C to +60 °C
Humidity range: 10 % to 80 % RH
positionable illumination cassettes, each with 5 fluorescent tubes
APT.line™ preheating chamber technology
Adjustable fan speed
Humidity regulation with capacitative humidity sensor and vapor humidification
Intuitive touchscreen controller with time-segment and real-time programming
Internal data logger, measured values can be read out in open format via USB
Unit self-test for comprehensive status analysis
Tight-sealing inner door made of safety glass (ESG)
Avoidance of glass corrosion by special TIMELESS coating
Display via color LCD monitor
stainless steel racks
Access port with silicone plug, 30 mm, left
Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
Computer interface: Ethernet
Door heating
60 Hz version on request

Technical specifications

Performance Data Temperature

Temperature range with 100% illumination [°C]: 10…60
Temperature range without illumination cassettes [°C]: 0…70

Performance Data Climate

Humidity range with illumination cassettes, with illumination [% RH]: 10…75
Humidity range without illumination [% RH]: 10…80
Temperature range with 100% illumination [°C]: 10…60
Temperature range without illumination cassettes [°C]: 10…70

Lightdata per Illumination Cassettes

Arabidopsis lamps [lx]*: 11000
Arabidopsis lamps [W/m²]*: 32
Daylight tubes [lx]*: 9000
Daylight tubes [W/m²]*: 24
Fluora® growth lamps [lx]*: 7500
Fluora® growth lamps [W/m²]*: 23

Electrical data

Nominal power [kW]: 2.4
Phase (Nominal voltage): 1~
Power frequency [Hz]: 50
Rated Voltage [V]: 200…240
Unit fuse [A]: 16

Doors

Inner doors: 1
Unit doors: 1

Housing dimensions not incl. fittings and connections

Depth net [in]: 31.52
Height net [in]: 57.7
Width net [in]: 36.45

Internal Dimensions

Depth [in]: 19.11
Height [in]: 30.93
Width [in]: 25.61

Measures

Interior volume [cu.ft.]: 8.7
Load per rack [lbs]: 66
Net weight of the unit (empty) [lbs]: 472
Permitted load [lbs]: 220
Wall clearance back [in]: 3.94
Wall clearance sidewise [in]: 3.94

Environment-specific data

Energy consumption at 37 °C and 75 % RH [Wh/h]: 760
Sound-pressure level [dB(A)]: 53

Fixtures

Number of illumination cassettes (std./max.): 2/2
Number of shelves (std./max.): 2/7
