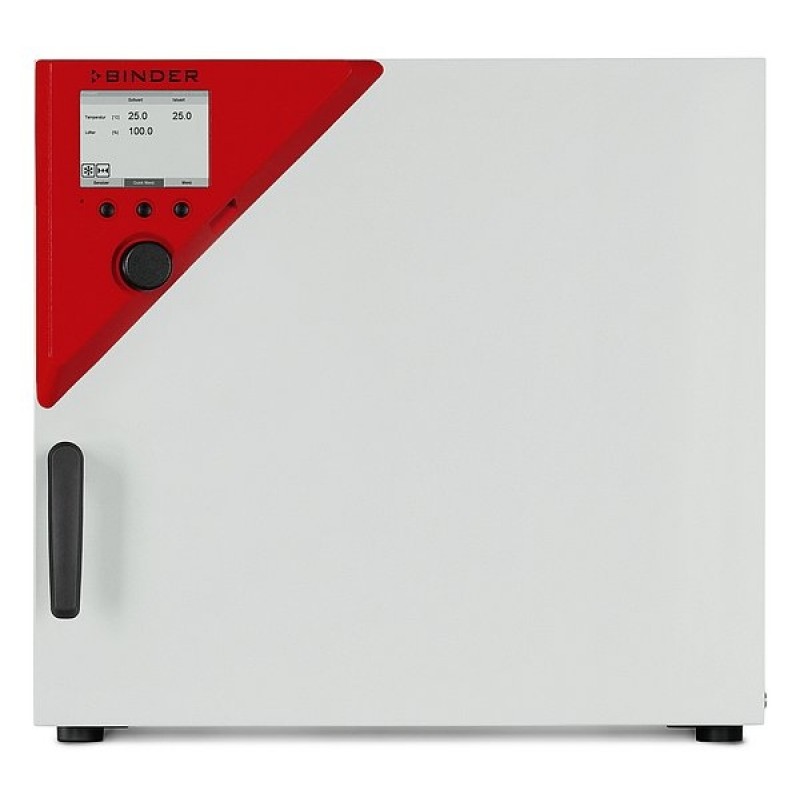

BINDER KT053UL-120V Series KT - Refrigerated Incubators, With Peltier Technology, 9020-0312

Benefits

Safe and reproducible incubation conditions even at high environmental conditions
Hot air disinfection at 100 °C
Energy efficient, environmentally friendly and secure

Important characteristics

Temperature range: 4 °C to 100 °C
APT.line™ preheating chamber technology
Adjustable fan speed
Electric refrigeration with Peltier module
Controller with time-segment and real-time programming
Display via LCD monitor
Input via pushbutton/rotary knob
Inner door made of tempered safety glass
2 stainless steel racks
Units up to 115 liters are stackable
Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
Computer interface: Ethernet
Data recording and USB interface

Technical specifications

Performance Data Temperature:

Max. heat compensation at 37 °C [W]: 100
Recovery time after 30 seconds door open at 37 °C [min]: 2
Temperature fluctuation [± K]: 0.1
Temperature range: 4…100
Temperature range °C: 4…100
Temperature variation at 37 °C [± K]: 0.3

Electrical data

Nominal power [kW]: 0.4
Phase (Nominal voltage): 1~
Power frequency [Hz]: 50/60
Rated Voltage [V]: 100…120
Unit fuse [A]: 10

Doors

Inner doors: 1
Unit doors: 1

Housing dimensions not incl. fittings and connections

Depth net [in]: 24.82
Height net [in]: 25.02
Width net [in]: 26

Internal Dimensions

Depth [in]: 13.16
Height [in]: 15.76
Width [in]: 15.76

Measures

Interior volume [cu.ft.]: 1.9
Load per rack [lbs]: 33
Net weight of the unit (empty) [lbs]: 139
Permitted load [lbs]: 88
Wall clearance back [in]: 3.94
Wall clearance sidewise [in]: 9.46

Environment-specific data

Energy consumption at 25 °C [Wh/h]: 75
Energy consumption at 37 °C [Wh/h]: 75
Sound-pressure level [dB(A)]: 48

Fixtures

Number of shelves (std./max.): 2/5
