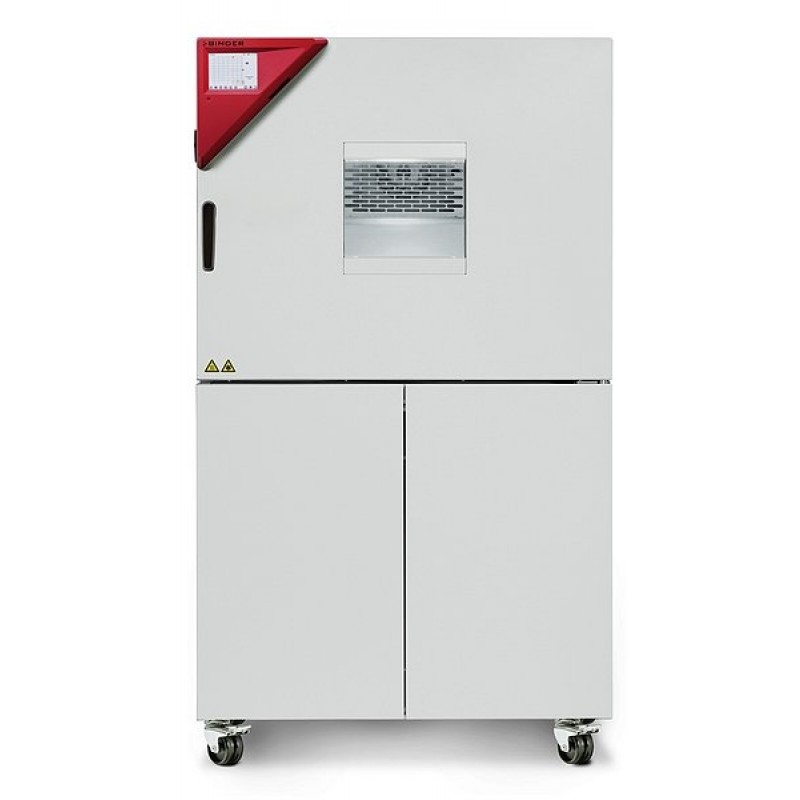

BINDER MK115-480V-C Series MK - Dynamic Climate Chambers, For Rapid Temperature Changes, 9020-0303

Benefits

Homogeneous climate conditions thanks to APT.line™ technology
Comprehensive programming and data acquisition
Large heated viewing window

Important characteristics

Temperature range: -40 °C to +180 °C
APT.line™ preheating chamber technology
Programmable condensation protection for test material
Heated viewing window with LED interior lighting
BINDER Multi Management Software APT-COM™ Basic Edition
Troubleshooting system with visual and audible alarms
Intuitive touchscreen controller with time-segment and real-time programming
Internal data logger, measured values can be read out in open format via USB
Access port with silicone plug, 50 mm, left
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
4 castors, two with brakes
Computer interface: Ethernet
Adjustable ramp function
Integrated chart recorder
Real-time clock
Door heating
1 stainless steel rack
Inner chamber made of stainless steel
CFC-free refrigerant R-452A
Cooling with compressor cooling unit

Optional equipment

APT-COM Multi Management Software – for managing, recording, and documenting unit parameters
Racks – option of stainless steel racks, depending on test requirements
Compressed air supply system
Services – wide range of services to ensure that the unit functions correctly

Technical specifications

Performance Data Temperature:

Average cooling down time according to IEC 60068-3-5 [K/min]: 5
Average heating-up rate according to IEC 60068-3-5 [K/min]: 5.3
Cooling down time from 180 °C to -40 °C [min]: 90
Max. heat compensation at 25 °C [W]: 1500
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range: -40…180
Temperature variation depending on setpoint [± K]: 0.1…2

Electrical data

Nominal power [kW]: 3.5
Phase (Nominal voltage): 3~
Power frequency [Hz]: 60
Rated Voltage [V]: 480
Unit fuse [A]: 16

Doors

Unit doors: 1

Housing dimensions not incl. fittings and connections

Depth net [in]: 34.08
Height net [in]: 68
Width net [in]: 38.61

Internal Dimensions

Depth [in]: 15.76
Height [in]: 18.91
Width [in]: 23.64

Measures

Interior volume [cu.ft.]: 4.1
Load per rack [lbs]: 66
Net weight of the unit (empty) [lbs]: 430
Permitted load [lbs]: 132
Viewing window height [in]: 8.75
Viewing window width [in]: 11.35
Wall clearance back [in]: 11.82
Wall clearance sidewise [in]: 7.88

Environment-specific data

Energy consumption at 20 °C: 650 Wh/h
Sound-pressure level [dB(A)]: 67

Fixtures

Number of shelves (std./max.): 1/4
