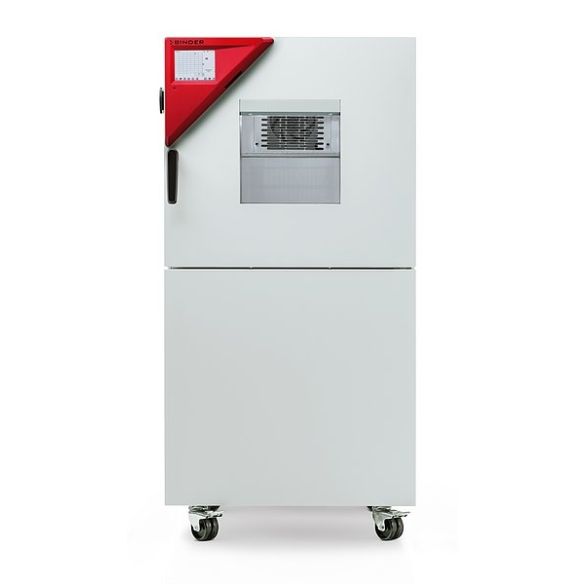

BINDER MKF056-240V Series MKF - Dynamic Climate Chambers, For Rapid Temperature Changes With Humidity Control, 9020-0389

Benefits

Homogeneous climate conditions thanks to APT.line™ technology
Automatic water and wastewater management
Pressure humidification with fast response times
Comprehensive programming and data acquisition
Large heated viewing window

Important characteristics

Temperature range: -40 °C to +180 °C
Humidity range: 10 % to 98 % RH
4 zero-voltage relay contacts that can be activated via MCS controller
APT.line™ preheating chamber technology
Programmable condensation protection for test material
Heated viewing window with LED interior lighting
Humidity regulation with capacitative humidity sensor and vapor humidification
BINDER Multi Management Software APT-COM™ Basic Edition
Troubleshooting system with visual and audible alarms
Intuitive touchscreen controller with time-segment and real-time programming
Internal data logger, measured values can be read out in open format via USB
Unit self-test for comprehensive status analysis
Access port with silicone plug: 50 mm, left
4 castors, two with brakes
Computer interface: Ethernet
Adjustable ramp function
Integrated chart recorder
Real-time clock
Door heating
1 stainless steel rack
Complete safety connection kit for water supply and drainage, up to 1 m height
BINDER test confirmation
Inner chamber made of stainless steel
Pt 100 temperature sensor
Thermal insulation using PUR foam
CFC-free refrigerant R-452A
Cooling with compressor cooling unit
Fin evaporator

Optional equipment

APT-COM Multi Management Software – for managing, recording, and documenting unit parameters
Racks – option of stainless steel racks, depending on test requirements
Systems for water treatment and compressed air supply
Services – wide range of services to ensure that the unit functions correctly

Technical specifications

Performance Data Temperature:

Average cooling down time according to IEC 60068-3-5 [K/min]: 5
Average heating-up rate according to IEC 60068-3-5 [K/min]: 5
Cooling down time from 180 °C to -40 °C [min]: 90
Max. heat compensation at 25 °C [W]: 1200
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range: -40…180
Temperature variation depending on setpoint [± K]: 0.5…1.5

Performance Data Climate

Dew point temperature range [°C]: 5…94
Humidity fluctuation depending on setpoint: ≤2,5 ± % RH
Humidity range: 10…98
Temperature fluctuation depending on setpoint [± K]: 0.1…0.5
Temperature range [°C]: 10…95

Electrical data

Nominal power [kW]: 2.8
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 200…240
Unit fuse [A]: 16

Doors

Unit doors: 1

Housing dimensions not incl. fittings and connections

Depth net [in]: 30.73
Height net [in]: 56.9
Width net [in]: 28.37

Internal Dimensions

Depth [in]: 13.71
Height [in]: 16.55
Width [in]: 15.76

Measures

Interior volume [cu.ft.]: 2.1
Load per rack [lbs]: 33
Net weight of the unit (empty) [lbs]: 386
Permitted load [lbs]: 132
Viewing window height [in]: 10.05
Viewing window width [in]: 11.35
Wall clearance back [in]: 11.82
Wall clearance sidewise [in]: 7.88

Environment-specific data

Energy consumption at 25 °C and 60 % RH [Wh/h]: 750
Sound-pressure level [dB(A)]: 59

Fixtures

Number of shelves (std./max.): 1/4
