Mfg Part Number
9020-0352

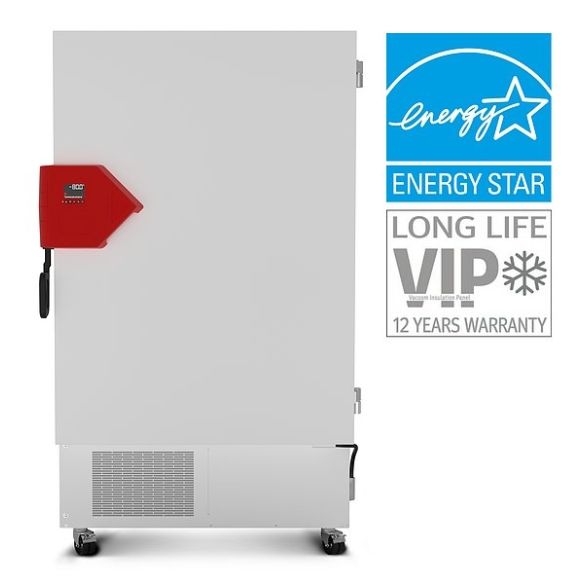

BINDER UFV700UL-120V, Ultra low temperature freezers, with climate-neutral refrigerants, 9020-0352
Quick Overview
Lowest energy consumption in its class
Environmentally-friendly refrigerants R-290 and R-170
Thermal insulation with unique long-life VIPs (vacuum insulation panels)
Rust-proof interior made completely of stainless steel
$22,822.45
Order will ship within 1-3 business days
Temperature range: -90 °C to -40 °C
Cooling down time from 22 °C to -80 °C [min]: 450
Temperature fluctuation at -80 °C [± K]: 1.5
Temperature range: -90…-40
Temperature variation at -80 °C [± K]: 2.5
Warm-up time during power failure from -80 °C / -122 °F to -60 °C / -76 °F [min]: 250
Nominal power [kW]: 1.4
Phase (Nominal voltage): 1~
Power frequency [Hz]: 60
Rated Voltage [V]: 120
Unit fuse [A]: 13
Unit doors: 1
Housing dimensions not incl. fittings and connections: Depth- 36.96 in, Height-77.5 in, Width - 43.70 in
Internal dimensions: Depth 23.84 in, Height - 51.2 in, Width - 35.07 in
Interior volume [cu.ft.]: 24.7
Net weight of the unit (empty) [lbs]: 637
Permitted load [lbs]: 441
Permitted load of individual compartment [lbs]: 110
Wall clearance back [in]: 3.94
Wall clearance sidewise [in]: 9.85
Average heat dissipation at set-point -80 °C and ambient temperature = 21 °C [W]: 340
Energy consumption at set-point -80 °C and ambient temperature = 21 °C [kWh/d]: 8.1
Sound-pressure level [dB(A)]: 47
Number of shelves (std./max.): 3/13
Cryoboxes, 50 mm: 528
Freezer racks per compartment: 6
| Brand | BINDER |
|---|---|
| UNSPSC | 41103005 |
