Mfg Part Number
3740-S

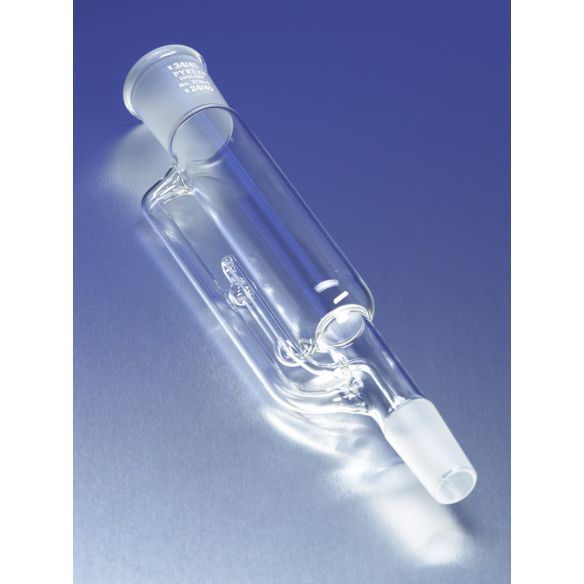

Corning 3740-S PYREX® 50 mL Soxhlet Extractor with Standard Taper Joints, Body Only
Quick Overview
• Qty./Pk- 1Pk
• Qty./Cs- 2/ Cs
• Capacity- 50mL
• Distance Siphon to Plate- 62mm (approx.)
• Height- 295mm (approx.)
• Standard Taper Inner Joint- 24/40
• Standard Taper Outer Joint- 34/45
• Brand- PYREX®
$541.60
Order will ship within 1-3 business days
These 50 mL PYREX® Soxhlet extractors have a bulb in siphon tube near the top of tube to facilitate cycling of the siphoning action. PYREX® extraction thimbles, paper filters or glass wool are used to support the sample. The siphon tube is protected from accidental damage by the vapor tube. The unit has a 24/40 inner Standard Taper joint and a 34/45 outer Standard Taper joints at the top and bottom. For glass extraction thimbles with fritted discs that can be used in these units in place of paper thimbles, see No. 33950.
| Brand | Corning |
|---|---|
| UNSPSC | 42293503 |
