Mfg Part Number
036300440
Heidolph 036300440 Overhead Stirrer Impeller PR 39 Pitched-Blade Impeller, 1/EA
Quick Overview

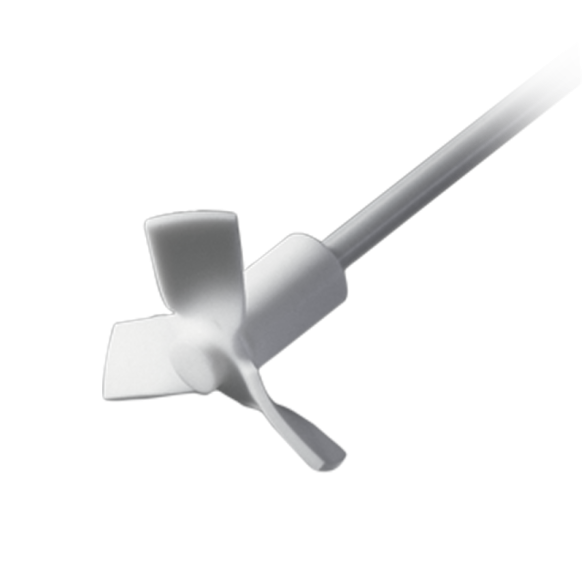

Overhead Stirrer Impeller PR 39 Pitched-Blade Impeller
Due to its stirrer blade dimensions, the PR 39 pitched-blade impeller is ideal for homogenizing very viscous media in vessels with the following characteristics:
ideal vessel diameter: 188- 375 mm
ideal ground clearance: 38- 75 mm
ideal filling level: 188- 375 mm
ideal volume: 5,200 - 41,400 ml
The pitched-blade impeller consists of a PTFE mixing blade and a PTFE-coated stainless steel shaft. The stainless-steel core ensures the stability of the stirrer shaft and the secure attachment in the overhead stirrer. The diameter in the clamping area is 6,5 mm; the stirrer shaft with the thick-walled PTFE coating has a diameter of 8 mm.
Due to its anti-adhesive property (non-stick coating), the pitched-blade impeller is easy to clean and can be used up to a maximum application temperature of 250°C.
• Recommended for applications which require average to high speed
• For mixing tasks with medium or high viscosity
• Excellent mixing properties for homogenization and suspensions
• This model creates an axial flow
• Propeller diameter – 75mm
• Material – PTFE
• Length – 350mm
• Shaft diameter – 8mm
• Max rpm – 800
$697.82
Order will ship within 1-3 business days
Overhead Stirrer Impeller PR 39 Pitched-Blade Impeller
Due to its stirrer blade dimensions, the PR 39 pitched-blade impeller is ideal for homogenizing very viscous media in vessels with the following characteristics:
ideal vessel diameter: 188- 375 mm ideal ground clearance: 38- 75 mm ideal filling level: 188- 375 mm ideal volume: 5,200 - 41,400 ml
The pitched-blade impeller consists of a PTFE mixing blade and a PTFE-coated stainless steel shaft. The stainless-steel core ensures the stability of the stirrer shaft and the secure attachment in the overhead stirrer. The diameter in the clamping area is 6,5 mm; the stirrer shaft with the thick-walled PTFE coating has a diameter of 8 mm.
Due to its anti-adhesive property (non-stick coating), the pitched-blade impeller is easy to clean and can be used up to a maximum application temperature of 250°C.
Recommended for applications which require average to high speed For mixing tasks with medium or high viscosity Excellent mixing properties for homogenization and suspensions This model creates an axial flow Propeller diameter – 75mm Material – PTFE Length – 350mm Shaft diameter – 8mm Max rpm – 800
| Brand | Heidolph North America |
|---|---|
| UNSPSC | 41103810 |
