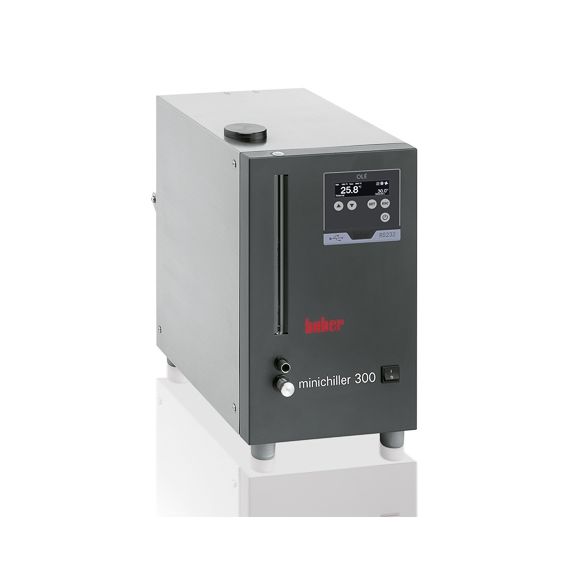

Huber 3006.0093.98 Minichiller 300 OLÉ, 110-120V 1~ 60Hz

Performance Characteristics

The compact Minichillers are an economic and environmentally friendly cooling solution for many laboratory applications. A calculation of water and waste water costs shows that a Minichiller can save up to 48,000 litres of water in a working week and due to its low procurement price, return on investment is achieved within a very short time. The units have small footprints, only requiring 225 x 360 mm on the laboratory bench and are therefore suitable for cooling reactor blocks, vacuum pumps, rotary evaporators or heat exchangers. Minichillers allow stable application conditions due to constant values for temperature, pressure and throughflow quantities. They are also perfect for continuous operation at ambient temperatures up to 40°C. Despite the economic purchase price the coolers are well equipped and have a large temperature indicator, fill level indicator, as well as status LEDs for the pump, cooling and heating. A 1 kW heater is optionally available with which the temperature range can be extended to +100°C. Minichillers are available as both air and water cooled models and use natural refrigerants.
The new OLÉ controller combines state-of-the-art technology with simple operation. OLÉ models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

Functions

Environmentally friendly, economical cooling solution
High efficiency
Accurate temperature control
Robust stainless steel construction
Safe for continuous operation with warning functions
Easy filling and emptying
Illuminated level indicator
Large, bright OLED display
Simple operation with menu navigation
USB and RS232 interface

Technical specifications

General & Temperature Control

Temperature range: -20...40 °C
Temperature consistency: ±0.5K
Temperature display: OLED display
Display resolution: 0.1K
Alarm message: optical, acoustic
Controller: OLE
Security class: I/NFL
Degree of protection: IP20
Dimensions (W x D x H): 225*360*380mm
Weight, net: 23kg

Heating / cooling capacity

Cooling capacity: 15 0 -10 -20 °C
0,3 0,2 0,14 0,07 kW
Cooling machine: air-cooled
Refrigerant (ASHRAE, GHS): R290 (A3, H220) (0,041 kg)

Circulation pump

Pressure pump max.: 14 lpm ; 0.25 bar | 3.7 gpm ; 3.62 psi
Suction pump max.: 10.5 lpm ; 0.17 bar | 2.77 gpm ; 2.47 psi
Pump connection: M16x1 AG male

Connections

Digital interface: USB (Device), RS232 interfaces

Operating data

Permissible ambient temp.: 5...40 °C
Noise level: 51 dB(A)
Filling volume min.: 1.4 Liters | 0.37 gal
Volume of expansion: 2.6 Liters | 0.69 gal
Power supply: 110-120V 1~ 60Hz
Current max.: 4,5 A
