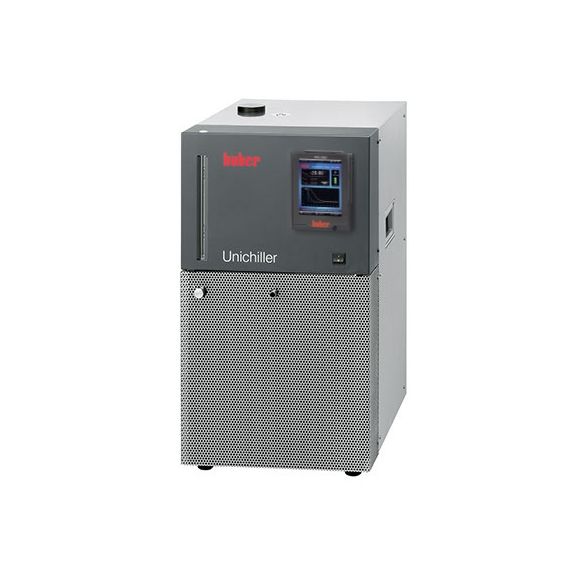

Huber 3050.0002.01 Unichiller 010-H with Pilot ONE, 208V 2~ 60Hz
Huber Unichillers offer better efficiency, stable pressure and delivery performance with a constant cooling water temperature compared to traditional tap water cooling. Chillers also reduce water consumption and help conserve the environment whilst lowering operating costs. Unichillers are suitable for the removal of heat from chemical processes, cooling technical plants or as a central cooling water supply for laboratories.
Functions
Environmentally-friendly, economic cooling solution
High efficiency
Precise temperature control
Powerful circulation pump
Robust stainless construction
Reliable continuously operation with warning functions
Easy to fill and empty
Illuminated filling level indicator
Pilot ONE controller with 5.7" touchscreen
2 x USB (Host and Device), Ethernet and RS232 interfaces
Technical specifications
General information & temperature controller
Temperature range: -20...100 °C
Temperature stability: ±0.2 °C
Controller: Pilot ONE (E-grade "Basic")
Safety class: III / FL
Protection class: IP20
Dimensions (W x D x H): 350 x 496 x 622 mm | 13.78 x 19.53 x 24.49 inches
Weight: 57 kg | 125.68 pounds
Heating / cooling capacity
Heating capacity: 1,6 kW
Cooling capacity: 15 0 -10 -20 °C
1 0,8 0,5 0,15 kW
Cooling machine: air-cooled
Refrigerant (ASHRAE, GHS): R449A (A1, H280)
Circulation pump
Pressure pump max.: 29 lpm ; 1 bar | 7.66 gpm ; 14.5 psi
Pump connection: G3/4 AG male
Pump speed adjustable: Yes
Connections
Pt100 connection: Pt100
Digital interface: RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp.: 5...40 °C
Noise level: 57 dB(A)
Filling volume min.: 3.8 Liters | 1 gal
Volume of expansion: 1.7 Liters | 0.45 gal
Power supply: 208V 2~ 60Hz
| Brand | White Box by Sycamore |
|---|---|
| UNSPSC | 41103007 |
| Power Requirement | 208V 2~ 60Hz |
| Temperature Stability (±ºC) | ±0.2 ºC |
| Temperature Range | -20...100 °C |
