Mfg Part Number
9012512.02

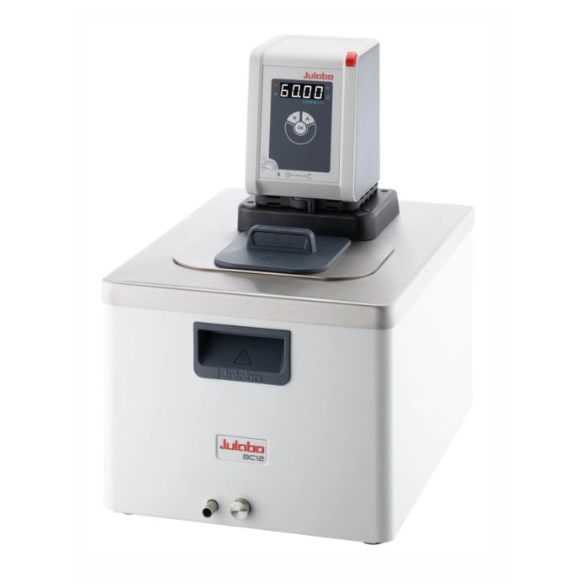

Julabo CORIO CD-BC12 Heating Circulator 9012512.02
Quick Overview
CORIO CD Heating Circulator combinations with stainless steel bath tanks for routine laboratory tasks. Units include bright LED display and easy operation.
CORIO CD immersion circulator provides temperatures from +20 to +150 °C . Integrated pump enables temperature incubation for internal or external bath applications. A lever below the display enables simple adjustment between internal and external flow. Pump capacity: 15 L/min; 5.1 PSI. The integrated USB port provide external PC communication for control / monitoring and data logging.
The CORIO™ CD has M16x1 male pump connections and comes with sets of 8 and 12 mm hose barbs. Stainless steel tanks include drain port.
For internal and external temperature applications. High quality stainless steel bath tanks with bath lid, drain tap and integrated cooling coil.
Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
$5,147.67
Order will ship within 1-3 business days
Specs
Heating Capacity (kW)
1 @ 115 V, 2 @ 230 V
Working Temp Range (°C)
+20 … +150
Pump Capacity Flow Rate (l/min)
15
Heating or Cooling Capability
Heating only
Pump Capacity Flow Pressure (psi)
5.08
External Devices
Remote Control
Dimensions W x L x H (in)
13 x 19.3 x 18.5
Fluid Type
Silicone, Water, Other
Weight (lbs)
26.9
Voltage Version
115 V / 60 Hz NRTL, 230 V / 60 Hz
Additional Options
NRTL (select voltage/frequency combinations only)
| Brand | Julabo |
|---|---|
| UNSPSC | 41103007 |
