Mfg Part Number
9013504.22

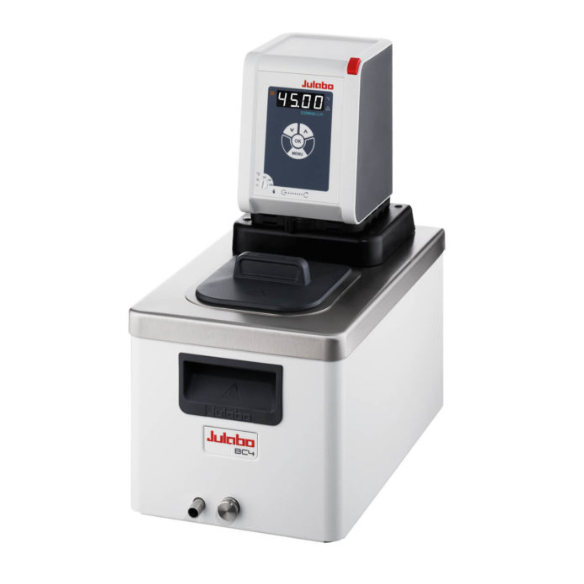

Julabo CORIO CP-BC4 Heating Circulator 9013504.22
Quick Overview
CORIO CP heating circulators are suitable for temperature applications to 200 °C with circulation to an external apparatus or immersing a device in the bath tank. The CORIO CP circulator incorporates easy change-over for control of fluid circulation internally or externally.
Pump inlet/outlet fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. Systems include insulated stainless-steel tanks with integrated cooling coil and drain ports. Bright LED display with easy to use interface including USB and RS232 connections for external PC control and data-logging. PID temperature control provides ±0.02 °C stability. Adjustable centrifugal pump capacity of 8-27 L/min with pressure from 1.5-10.2 psi
Class III (FL) according to DIN 12876-1
Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
$5,137.64
Order will ship within 1-3 business days
Specs
Heating Capacity (kW)
1 @ 115 V, 2 @ 230 V
Working Temp Range (°C)
+20…+200
Heating or Cooling Capability
Heating only
External Devices
Remote Control
Dimensions W x L x H (in)
9.1 x 16.2 x 16.6
Pump Capacity Flow Pressure (psi)
1.5…10.2
Fluid Type
Silicone, Water, Other
Pump Capacity Flow Rate (l/min)
8…27
Weight (lbs)
19.4
Voltage Version
100 V – 115 V / 50 – 60 Hz, 200 V – 230 V / 50 – 60 Hz
| Brand | Julabo |
|---|---|
| UNSPSC | 41103701 |
