Mfg Part Number
WL-101-0203

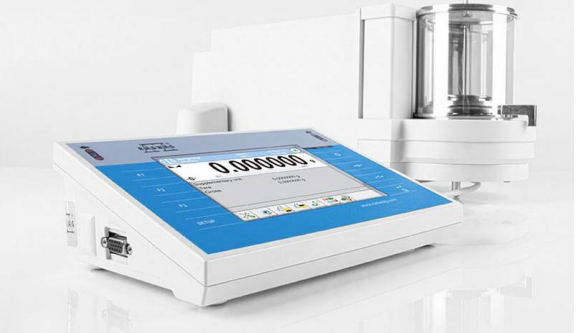

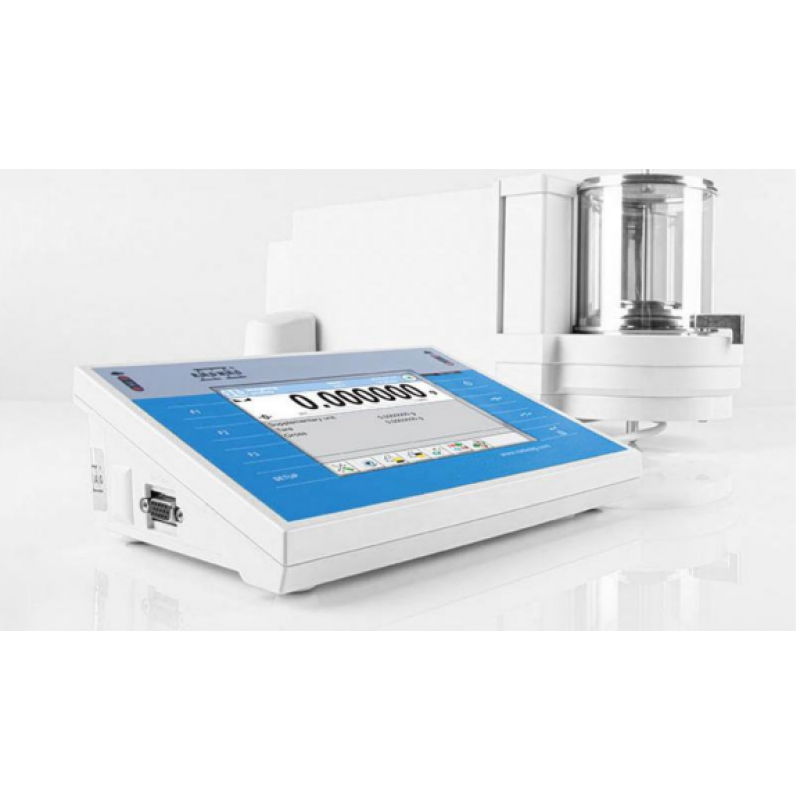

MYA.4Y PLUS Microbalance, 5.1g x 0.001mg, 5.7"" Color Touch Screen, WL101-0203
Quick Overview
Maximum capacity [Max] 5,1 g
Minimum load 100 µg
Readability [d] 1 µg
Tare range -5,1 g
Weighing Pan Dimensions: ø26 mm
$13,753.95
Order will ship within 1-3 business days
Power supply 100 ÷ 240 V AC 50 / 60 Hz
Power consumption max. 10 W
Communication: 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi
Weighing Pan Dimensions: ø26 mm
Display: 5,7” resistive colour touchscreen
Maximum capacity [Max] 5,1 g
Minimum load 100 µg
Readability [d] 1 µg
Tare range -5,1 g
8-12-2021 2/3 radwag.com
Verification scale interval [e] 1 mg
Standard repeatability [5% Max] 0,6 µg
Standard repeatability [Max] 1,6 µg
Permissible repeatability [5% Max] 1,2 µg
Permissible repeatability [Max] 2,4 µg
Linearity ±5 µg
Eccentric load deviation 5 µg
Sensitivity offset 1,5×10-6×Rt
Sensitivity time drift 1×10-6/Year×Rt
Stabilization time max 8 s
Adjustment internal (automatic)
OIML Class I
Standard minimum weight (USP) 1,2 mg
Standard minimum weight (U=1%, k=2) 0,12 mg
Sensitivity temperature drift 1×10-6/°C×Rt
Protection class IP 43
Operating temperature +10 ÷ +40 °C
Operating temperature change rate ±0,3°C/1h (±1°C/8h)
Relative humidity 40% ÷ 80%
Relative humidity change rate ±1%/h (±4%/8h)
| Brand | Radwag |
|---|---|
| UNSPSC | 41111501 |
