Quick Overview
Speed Range: 30 rpm – 2000 rpm
Capacity: 25 L
Sample Viscosity (mPa s): maximum 25,000
Capacity: 25 L
Sample Viscosity (mPa s): maximum 25,000
Details

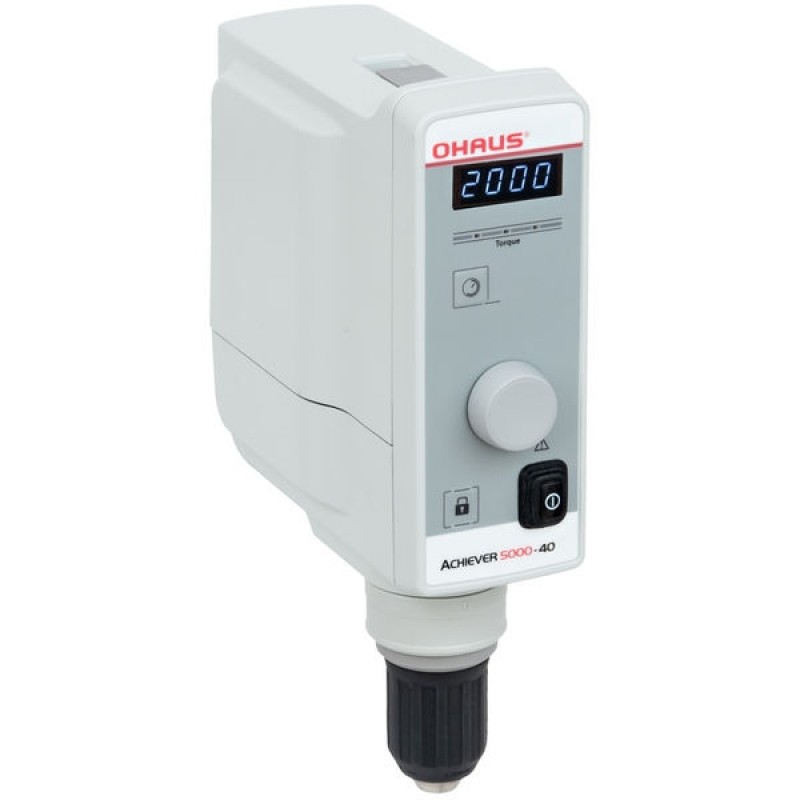

OHAUS Achiever™ 5000 Overhead Stirrers are designed for powerful, precise stirring, safety and simplicity in all applications. The sealed design has an IP54 rating and ensures safe mixing performance even in the most demanding applications. The keyless chuck and software-controlled speed ramping provide easy setup and safe stirring to protect the sample and user. Select from five models with up to 200 Ncm torque and up to 100 L volume capacity.
Torque (max): 40 Ncm
Chuck Range (Diameter): 1-13 mm
Shaft Pass-Through (Diameter): up to 8.5 mm
Control: Digital
Dimensions: 9.3 in x 11.2 in x 3.5 in (235 mm x 285 mm x 90 mm) (LxHxW)
Display: LED Display
Function: Stirring
IP rating IP 54
Net Weight: 9 lb (4.1 kg)
Power: 115 / 230 VAC
Power Consumption: 190 W
Safety Certification: cNemkous
Speed Accuracy: ±1 rpm
Speed Range: 30 rpm ; 2,000 rpm
Timer: 1 minute – 99 hours, 59 minutes
Working Environment: 41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
Torque (max): 40 Ncm
Chuck Range (Diameter): 1-13 mm
Shaft Pass-Through (Diameter): up to 8.5 mm
Control: Digital
Dimensions: 9.3 in x 11.2 in x 3.5 in (235 mm x 285 mm x 90 mm) (LxHxW)
Display: LED Display
Function: Stirring
IP rating IP 54
Net Weight: 9 lb (4.1 kg)
Power: 115 / 230 VAC
Power Consumption: 190 W
Safety Certification: cNemkous
Speed Accuracy: ±1 rpm
Speed Range: 30 rpm ; 2,000 rpm
Timer: 1 minute – 99 hours, 59 minutes
Working Environment: 41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
Additional Information
| Brand | Ohaus |
|---|---|
| UNSPSC | 41103800 |
