Details

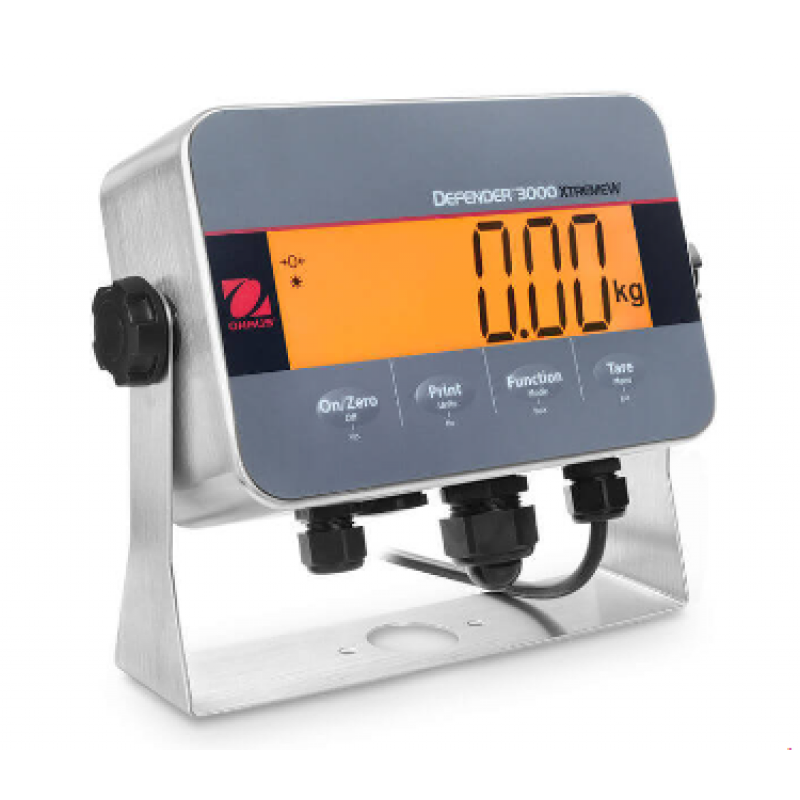

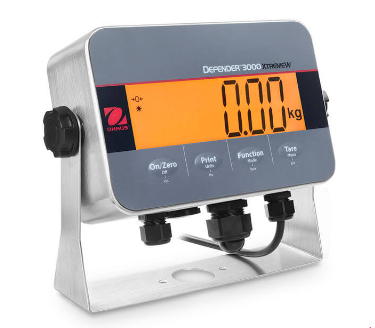

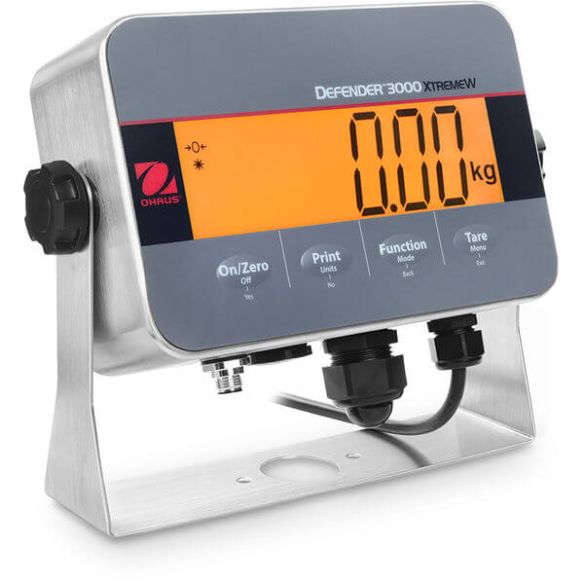

i-DT33XW is the go-to indicator when simplicity and accuracy are necessary in wet environments, or where the ability to frequently wash down is a must. The IP66 washdown stainless steel housing indicator features software for Weighing, Parts Counting, Checkweighing and Totalization, a large multicolor backlit LCD display, stainless steel mounting bracket, and a built-in bi-directional RS232C for printing or data connectivity.
Features
Applications
Weighing, Parts Counting, Checkweighing, and Totalization
Display
7 Segment LCD with multicolor backlight
Operation
Internal power supply with power cord (included), 6C (LR14) Batteries (not included) or Rechargeable Battery
Communication
Standard RS232 and optional USB Device or Ethernet
Construction
IP66 stainless steel housing and mounting bracket
Specifications
Resolution
30,000
Resolution (Certified)
6,000
Battery Life
100 Hours with Rechargeable Battery
Protection Rating
IP66
Units of Measurement
Metric Tons; Gram; Kilogram; Pound; Ounce; Pound:Ounce
Legal for Trade
NTEP Certified; Measurement Canada Approved
Dimensions
10.1 in x 8 in x 2.9 in (256 mm x 204 mm x 74 mm) (LxHxW)
Display
7 Segment LCD with multicolor backlight
Working Environment
-10°C – 40°C, 85%RH, non-condensing (14°F – 104°F, 85%RH, non-condensing)
Tare Range
To capacity by subtraction
Net Weight
6.6 lb (3 kg)
Power
AC Power (Included); Rechargeable Battery (Included)
Communication
Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory)"
