Quick Overview
Maximum Capacity: 220 g
Readability: 0.1 mg
Pan Size: 3.5 in (90 mm)
Item Number: 30430061
Readability: 0.1 mg
Pan Size: 3.5 in (90 mm)
Item Number: 30430061
Details

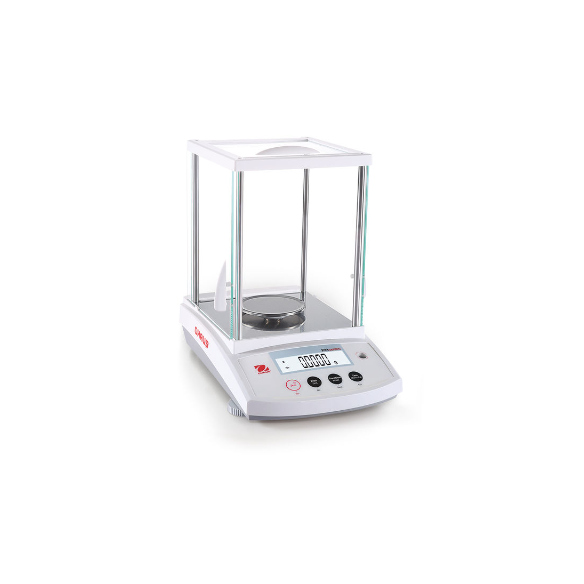

Offering accuracy and repeatability in essential weighing applications in laboratory, industrial and education settings, PR Analytical and Precision Balances deliver competitive performance at an economical price. Featuring RS232 connectivity for easy communication, and a backlit display and a simple interface for uncomplicated operation, the PR is perfectly designed for your workplace.
SPECIFICATIONS
Maximum Capacity: 220 g
Readability: 0.1 mg
Pan Size: 3.5 in (90 mm)
Internal Calibration: InCal - Semi Automatic
Draftshield: Included
Auto Door: Not applicable
Auxiliary Display Model: Available as an Accessory
Battery Life: Not applicable
Built-in Ionizer: No
Communication: RS232
Dimensions: 12.5 in x 11.9 in x 7.9 in (317 mm x 303 mm x 201 mm) (LxHxW)
Display: LCD with backlight
Inuse cover: No
Legal for Trade: No
Linearity ±: 0.0002 g
Minimum Weight (USP, 0.1%, typical): 200 mg
Net Weight: 10 lb (4.5 kg)
Pan Construction: Stainless Steel
Power: AC Adapter (Included)
Repeatability, typical: 0.0001 g
Stabilization Time: 3 s
Tare Range: To capacity by subtraction
Units of Measurement: Milligram; Pennyweight; Ounce Troy; Newton; Taiwan Tael; Gram; Grain; Ounce; Carat; Custom
Working Environment: operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)
Applications
Basic Weighing, Parts Counting, Percent Weighing
Display
Backlit Liquid Crystal Display (LCD)
Operation
AC adapter (included)
Communication
RS232 (one port included)
Construction
ABS top housing, removable stainless steel pan, removable glass draftshield with sliding top door, integrated weigh-below-hook, security bracket, calibration lock
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator
SPECIFICATIONS
Maximum Capacity: 220 g
Readability: 0.1 mg
Pan Size: 3.5 in (90 mm)
Internal Calibration: InCal - Semi Automatic
Draftshield: Included
Auto Door: Not applicable
Auxiliary Display Model: Available as an Accessory
Battery Life: Not applicable
Built-in Ionizer: No
Communication: RS232
Dimensions: 12.5 in x 11.9 in x 7.9 in (317 mm x 303 mm x 201 mm) (LxHxW)
Display: LCD with backlight
Inuse cover: No
Legal for Trade: No
Linearity ±: 0.0002 g
Minimum Weight (USP, 0.1%, typical): 200 mg
Net Weight: 10 lb (4.5 kg)
Pan Construction: Stainless Steel
Power: AC Adapter (Included)
Repeatability, typical: 0.0001 g
Stabilization Time: 3 s
Tare Range: To capacity by subtraction
Units of Measurement: Milligram; Pennyweight; Ounce Troy; Newton; Taiwan Tael; Gram; Grain; Ounce; Carat; Custom
Working Environment: operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)
Applications
Basic Weighing, Parts Counting, Percent Weighing
Display
Backlit Liquid Crystal Display (LCD)
Operation
AC adapter (included)
Communication
RS232 (one port included)
Construction
ABS top housing, removable stainless steel pan, removable glass draftshield with sliding top door, integrated weigh-below-hook, security bracket, calibration lock
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator
Additional Information
| Brand | Ohaus |
|---|---|
| UNSPSC | 41111505 |
