Mfg Part Number
CA10A3T3-41AA1N

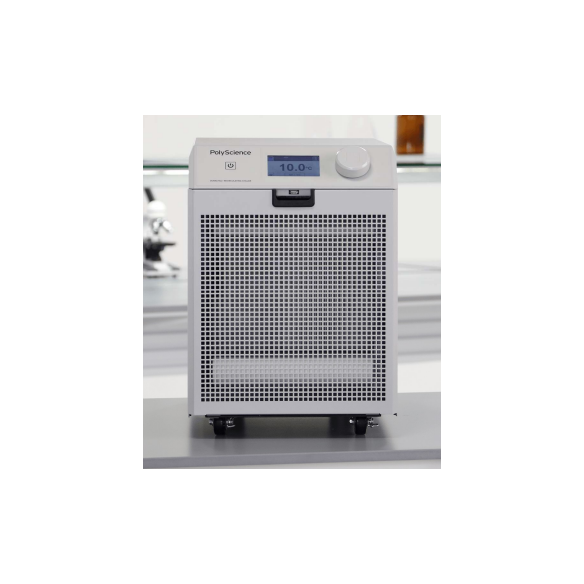

PolyScience Durachill CA10A3T3-41AA1N Chiller, 1 HP, + Stainless Steel Turbine Pump
Quick Overview
208-240V 60hz
Compact, portable design takes up less floor space
Cooling at ambient temperatures as high as 35°C
Dry Contact
Four 2” swivel casters, front locking
Ultraviolet Anti-biological light
Capacitive Liquid Fill-Level Sensor
4.3” Full-Color TFT Touchscreen
RS-232 Connectivity
Status Relay
Front-fill reservoir
User-adjustable temperature and pressure alarms
Patent-pending Self-Cleaning Dynamic Filter System ensures maximum airflow and consistent
operation.
$10,321.50
Order will ship within 1-3 business days
Key Specifications
Working Temperature: -10 to 70°C / 14 to 158°F
Temperature Stability: ±0.1°C
Power Requirements: 230V, 60Hz, 13.5A
Reservoir Capacity 1.0 / 3.8 (gallons/liters):
Overall Dimensions 26.0 x 15.0 x 21.8in
(L x W x H): (66 x 38.1 x 55.4cm)
Pump type: Turbine Pump, 1/3HP, SS
Refrigerant type: R134a
Refrigerant mass: 385g (0.55 tonnes CO2 eq)
Process Connections: 1/2 inch female NPT
Cooling Capacity: 2.90 kW @ 20°C, 1.93 kW @ 10°C, 1.00 kW @ 0°C
Sound Pressure Level @ 1m: Full Load - 61.2 dBA*, No Load - 60.3 dBA* *Based on 1HP models
Fluid: Standard Fluid, Water, 50/50 Glycol
| Brand | PolyScience |
|---|---|
| UNSPSC | 41103023 |
