Mfg Part Number
850102019999

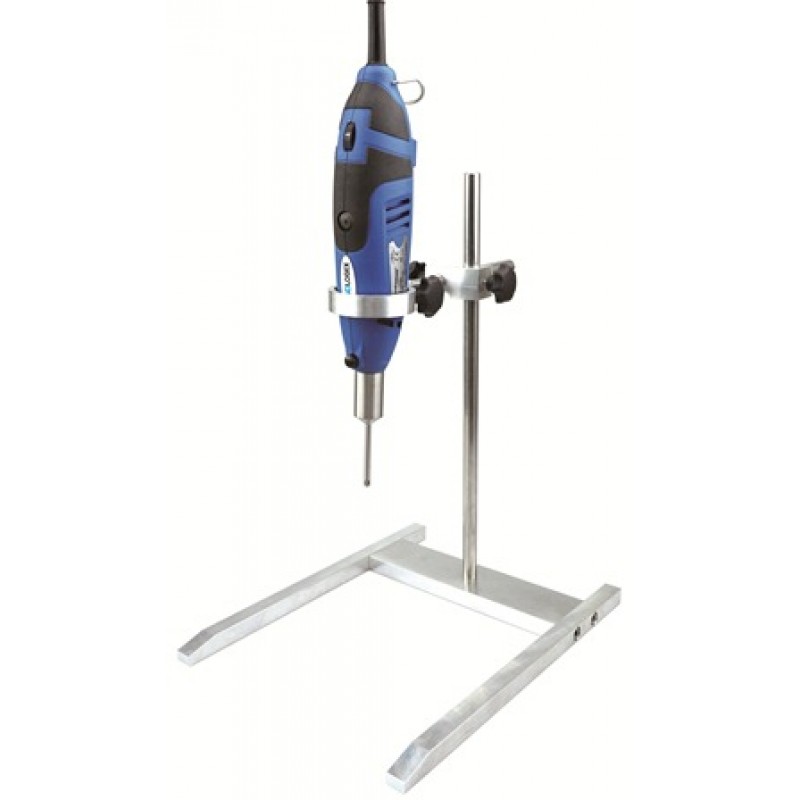

Scilogex D160/10 Homogenizer Package, 250 mL Capacity Drive Motor, 250 mL Capacity Generator Probe, 850102019999
Quick Overview
• Kit Includes: Drive Motor, Stand, Generator Probe
• Volume Capacity : 250 mL
• Speed Range : 8000 - 30000 RPM
• Fineness: Suspensions & Emulsions ( 1 - 10 μm)
• Immersion Length : 115 mm
$1,449.02
Order will ship within 1-3 business days
- The Scilogex D160/10 Homogenizer Package includes the Drive Motor, H-370 stand, and DS-160/10 generator probe. The Scilogex DS-160/10 generator probe is made of 316L stainless steel with PTFE brushings. The generator has a 10 mm diameter, flat head-open slot, and a 115 mm immerse length. This probe is compatible with solid and liquid media at working volumes of 1 - 250 mL.
- Included in Package DS-160/10 Generator Probe for Liquid/Solid Media | 1 - 250 mL Volumes DS-160/5 Generator Probe for Liquid/Solid Media | 0.1 - 50 mL Volumes Saw Tooth Generator Probe for Tissues | 0.1 - 50 mL Volumes Saw Tooth Generator Probe for Tissues | 1 - 50 mL Volumes Saw Tooth Generator Probe for Tissues | 1 - 250 mL Volumes Saw Tooth Generator Probe for Tissues | 100 - 1000 mL Volumes
- The Scilogex D160 Homogenizer can rapidly homogenize, disperse, and emmulsify samples in 0.1-150 mL of liquid if using the probe included in the kit, or 1- 50 mL if using other probes sold separately.
- During operation, the suspended material is drawn into the core of the homogenizer by a rotor turning at up to 30,000 RPM. The material is repeatedly cycled through narrow slits in the probe where it is rapidly sheared and disintegrated by high shear. This product is easy to hold and light weight for one handed operation.
- Complete homogenization of tissues (muscle, liver, breast tissue, etc.) is usually achieved in a few seconds with little, if any, heat produced during the process.
- All shafts are interchangeable shafts and are autoclavable.
- This product comes with a 2 year warranty.
| Brand | Scilogex |
|---|---|
| UNSPSC | 41101504 |
| Type of Product | Homogenizer |
| Speed Range | 8000 - 30000 RPM |
| Immersion Length | 115 mm |
| Fineness | Suspensions & Emulsions ( 1 - 10 μm) |
| Noise Emission | 54 dB(A) at 30000 RPM |
| Capacity | 250 mL |
| Control Type | 6 Position Control Dial |
| Motor Type | 130 Watt, Universal Motor |
| Voltage | 110V |
| Weight | 18 lbs. |
| Dimensions | 2.5 L x 2.5 W x 8 H " |
