Mfg Part Number
3PrimeX/02

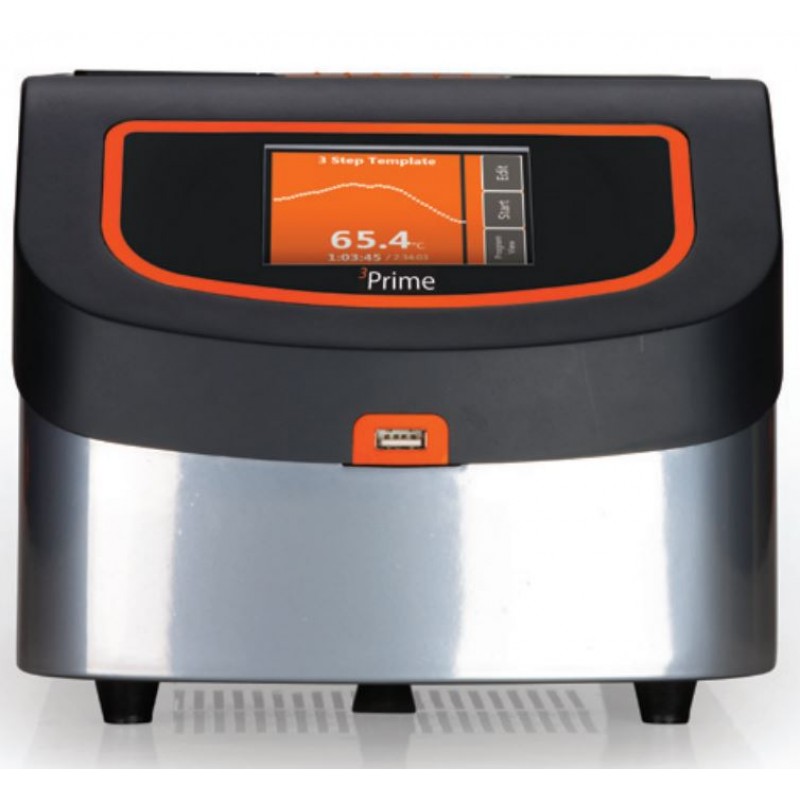

Techne ³PrimeX Thermal Cycler, Block Fits 48 x 0.2 mL PCR Tubes
Quick Overview
Block Fits 24 x 0.2 mL PCR Tubes
Not Gradient Enabled
Heated Lid, Adjustable Pressure
3.0°C / Second Max Heating Rate
350 x 210 x 180 mm Exterior Dimensions
$4,508.33
Order will ship within 1-3 business days
The ³PrimeX delivers all the features of the ³Prime instrument but with an expanded sample capacity, accommodating 48 x 0.2ml microtubes, 30 x 0.5ml tubes plus half a 96 well plate in a horizontal format. Design flexibility allows the unit to be upgraded to included gradient cycling capability.
Product Features:
• Colour touchscreen interface for fast program setup
• Small space-saving footprint
• Larger block sizes; 48 x 0.2ml PCR Tubes(half 96-well plate)
• Fast ramp rate up to 3.0°C/sec
• Upgrade to gradient cycling (see ³PrimeG specification)
• Data Transfer via USB
• Techne 4 year warranty
| Brand | Techne |
|---|---|
| UNSPSC | 41106300 |
| Block Fits | 0.2 mL PCR Tubes, 48-Well PCR Plate |
| Block Size | 48 |
| Block Temperature | 10°C to 100ºC (4°C Final Hold) |
| Dimensions | 350 x 210 x 180mm |
| Peltier Elements | 4 Peltier Elements Per Block |
| Gradient Cycling | No |
| Heat Lid | Adjustable |
| Lid Temperature | 35 °C to 100°C or Off |
| Restart on Power Failure | Auto |
| Power Requirement | 100-230V / 50-60Hz / 155W |
| Programs Stored | 1000 |
| Temperature Accuracy | ± 0.25 °C at 55 °C |
| Temperature Uniformity | ± 0.3 °C at 55 °C |
| Connectivity | USB |
| Fast Cycling | Yes |
| Heated Lid | Yes |
| Model | Techne ³PrimeX |
