Mfg Part Number
10005544

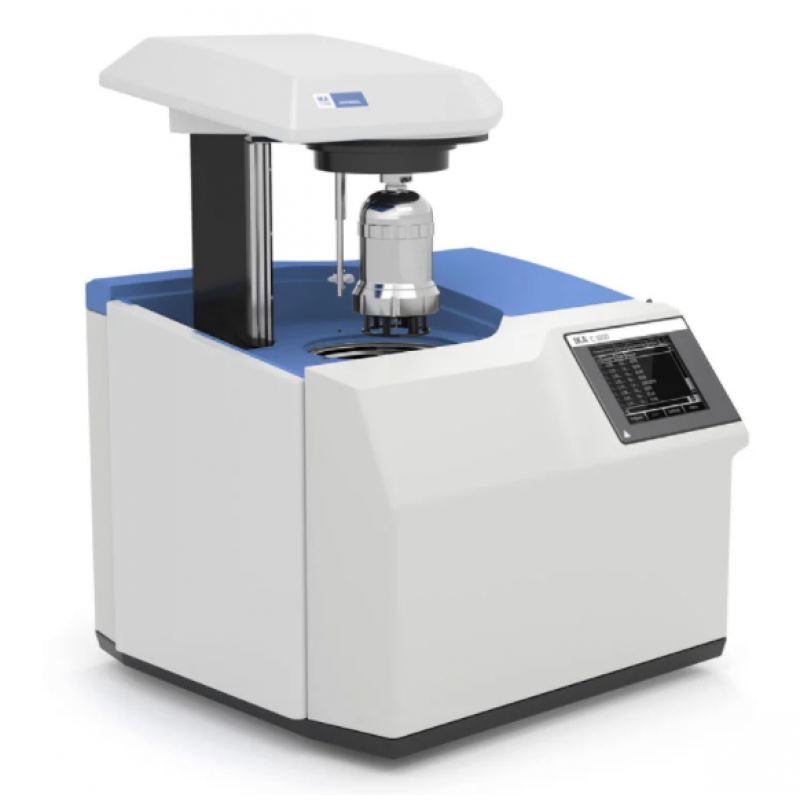

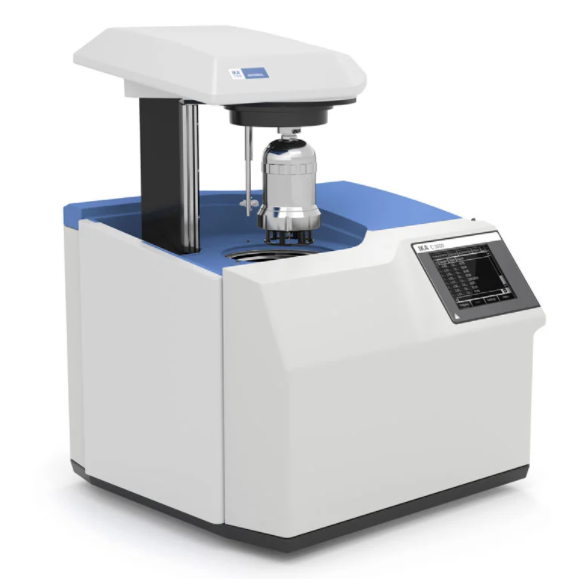

C 3000 isoperibol Package 1/12, 10005544, Includes C 3000 measuring cell, C 6012 decomposition vessel, halogen resistant, RC 2 basic recirculation chiller, Wear parts and consumables for up to 500 tests
Quick Overview
Measuring range max. 40000 J
Temperature measurement resolution 0.0001 K
Cooling medium temperature 12 - 27 °C
Chiller RC 2 basic
Flow rate 60 - 70 l/h
RS 232 interface yes
USB interface yes
$36,359.40
Order will ship within 1-3 business days
Easy handling by touch screen operation or a standard USB mouse
Two different starting temperatures to choose from (22°C, 30°C)
Automatic ignition, automatic water filling and draining, automatic oxygen filling
Several interfaces: Ethernet, RS 232, USB, SD card slot
Six temperature sensors to monitor all temperatures allowing best analyses
Spherically shaped decomposition vessel for better pressure stability and faster heat transfer
Easy sample preparation due to new upside down crucible holder technology
Can be operated with a chiller (e.g. RC 2 basic).
It includes:
C 3000 measuring cell
C 6012 decomposition vessel, halogen resistant
RC 2 basic recirculation chiller
Wear parts and consumables for up to 500 tests
SPECIFICATIONS:
Measuring range max. 40000 J
Measuring mode dynamic 22°C yes
Measuring mode isoperibol 22°C yes
Measuring mode dynamic 30°C yes
Measuring mode isoperibol 30°C yes
Measurements/h dynamic 6
Measurements/h isoperibol 4
Reproducibility dynamic (1g benzoic acid NBS39i) 0.15 %RSD
Reproducibility isoperibol (1g benzoic acid NBS39i) 0.05 %RSD
Touchscreen yes
Working temperature 22 - 30 °C
Temperature measurement resolution 0.0001 K
Cooling medium temperature 12 - 27 °C
Cooling medium permissible operating pressure 1.5 bar
Cooling medium tap water
Type of cooling flow
Chiller RC 2 basic
Flow rate 60 - 70 l/h
Rec. flow rate at 18°C 60 l/h
Oxygen operating pressure max. 40 bar
Interface scale RS232
Interface printer USB
Interface PC RS232
Interface ext. keyboard yes
Oxygen filling yes
Decomposition vessel C 6010 yes
Decomposition vessel C 6012 yes
Analysis according to ASTM D240 yes
Analysis according to ASTM D4809 yes
Analysis according to ASTM D5865 yes
Analysis according to ISO 1928 yes
Analysis according to GB T213 yes
Dimensions (W x H x D) 500 x 425 x 450 mm
Weight 29 kg
Permissible ambient temperature 20 - 30 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface yes
USB interface yes
Voltage 100 - 120 V
Frequency 50/60 Hz
Power input 1700 W
| Brand | IKA |
|---|---|
| UNSPSC | 41113120 |
