Quick Overview
Technical Data
Volume range (H2O) 0.005 - 0.015 l
Stator diameter 22 mm
Rotor diameter 21.5 mm
Gap between rotor and stator 0.25 mm
Tube diameter 29 mm
Circumferential speed at 6000 rpm 6.7 m/s
Volume Tube 20 ml
FDA conformity yes
Material: Dispersing Unit PEEK + PTFE
Material: Membrane PP
Material: Testing Vessel and Cap PP
Material: Gyrate Stick PEEK
Weight 0.432 kg
Packing unit 25 pcs
Permissible ambient temperature 5 - 40 °C
Volume range (H2O) 0.005 - 0.015 l
Stator diameter 22 mm
Rotor diameter 21.5 mm
Gap between rotor and stator 0.25 mm
Tube diameter 29 mm
Circumferential speed at 6000 rpm 6.7 m/s
Volume Tube 20 ml
FDA conformity yes
Material: Dispersing Unit PEEK + PTFE
Material: Membrane PP
Material: Testing Vessel and Cap PP
Material: Gyrate Stick PEEK
Weight 0.432 kg
Packing unit 25 pcs
Permissible ambient temperature 5 - 40 °C
Details

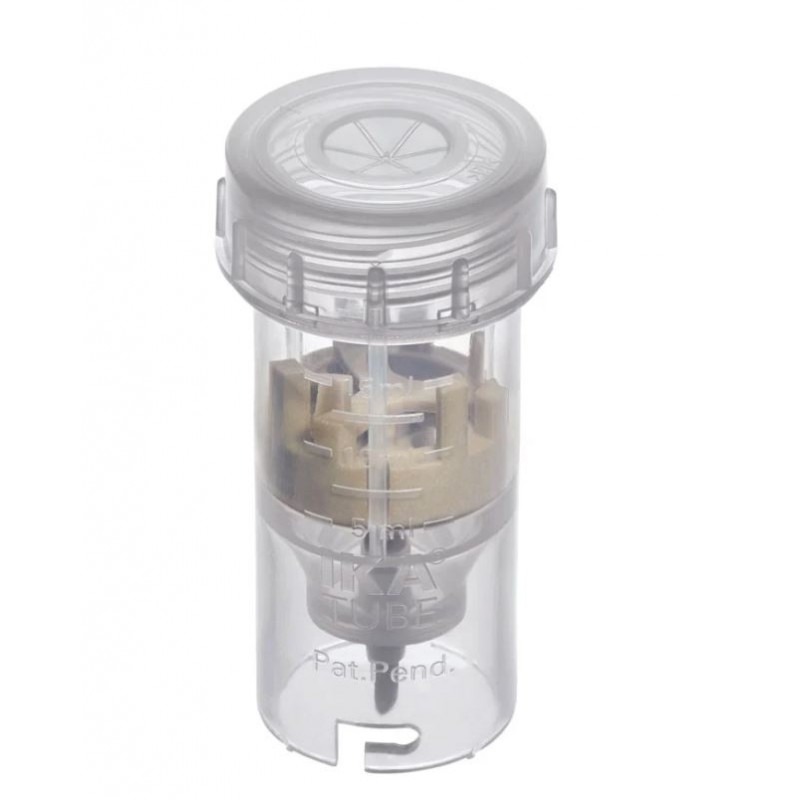

DT-20 Dispersing tube, 20 ml
Components: Tube, dispersing device, cover
Volume: 5 - 15 ml
Application: Dispersion, homogenisation, suspensions
Further suitable for:
additional media quantities may be added during operation
sampling during operation
Packing unit: 25 pieces
Compatibility
IKA Single-Use Crushing / IVD
ULTRA-TURRAX® Tube Drive P control Workstation
Ident. No.: 0025005836
IKA Single-Use Crushing / IVD
ULTRA-TURRAX® Tube Drive P control
Ident. No.: 0025005981
IKA Single-Use Crushing / IVD
ULTRA-TURRAX® Tube Drive
Ident. No.: 0003646000
IKA Single-Use Crushing / IVD
UTTD control Life Science Solution
Ident. No.: 0010013296
IKA Single-Use Crushing / IVD
UTTD control Pharma Solution
Ident. No.: 0010013297
Components: Tube, dispersing device, cover
Volume: 5 - 15 ml
Application: Dispersion, homogenisation, suspensions
Further suitable for:
additional media quantities may be added during operation
sampling during operation
Packing unit: 25 pieces
Compatibility
IKA Single-Use Crushing / IVD
ULTRA-TURRAX® Tube Drive P control Workstation
Ident. No.: 0025005836
IKA Single-Use Crushing / IVD
ULTRA-TURRAX® Tube Drive P control
Ident. No.: 0025005981
IKA Single-Use Crushing / IVD
ULTRA-TURRAX® Tube Drive
Ident. No.: 0003646000
IKA Single-Use Crushing / IVD
UTTD control Life Science Solution
Ident. No.: 0010013296
IKA Single-Use Crushing / IVD
UTTD control Pharma Solution
Ident. No.: 0010013297
Additional Information
| Brand | IKA |
|---|---|
| UNSPSC | N/A |
