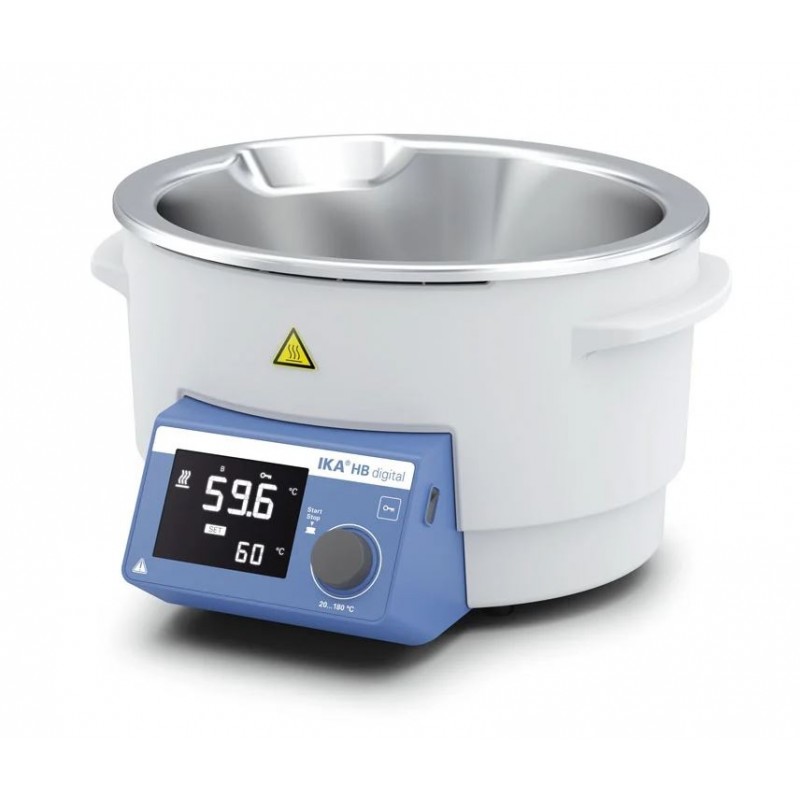

Quick Overview
4 l bath volume
Max. media temperature: 180 °C
Ergonomic handles
Key button to lock heating bath temperature
Clear, black-and-white display
Safety operating modes A, B, C
Permanent set-point/ actual temperature display
USB interface
Max. media temperature: 180 °C
Ergonomic handles
Key button to lock heating bath temperature
Clear, black-and-white display
Safety operating modes A, B, C
Permanent set-point/ actual temperature display
USB interface
Details
Heat output: 1400 W
Heating temperature range: room temp. - 180 °C
Heat control: Turning knob
Set temperature resolution: ±1 K
Controller oscillation (3 l water / 90 °C): ±1 K
Absolute deviation/mean (3l water / 90 °C): ±2 K
Controller oscillation (3l Silicone oil / 50mPas / 150°C): ±2 K
Absolute deviation/mean (3 l Silicone oil / 50mPas/ 150°C): ±4 K
Speed display: LCD
Filling volume max.: 4 l
Filling point min.: 60 mm
Material in contact with medium: stainless steel 1.4404
Fixed safety circuit: 190 °C
Adjustable safety circuit: 50 - 190 °C
Class designation acc. DIN 12876: II
Outer diameter: 257 mm
Inner diameter: 225 mm
Outer height: 190 mm
Inner height: 130 mm
Dimensions: (W x H x D) 330 x 190 x 325 mm
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
USB interface: yes
Voltage: 100 - 120 V
Frequency: 50/60 Hz
Power input: 1450 W
Power input standby: 3 W
Heating temperature range: room temp. - 180 °C
Heat control: Turning knob
Set temperature resolution: ±1 K
Controller oscillation (3 l water / 90 °C): ±1 K
Absolute deviation/mean (3l water / 90 °C): ±2 K
Controller oscillation (3l Silicone oil / 50mPas / 150°C): ±2 K
Absolute deviation/mean (3 l Silicone oil / 50mPas/ 150°C): ±4 K
Speed display: LCD
Filling volume max.: 4 l
Filling point min.: 60 mm
Material in contact with medium: stainless steel 1.4404
Fixed safety circuit: 190 °C
Adjustable safety circuit: 50 - 190 °C
Class designation acc. DIN 12876: II
Outer diameter: 257 mm
Inner diameter: 225 mm
Outer height: 190 mm
Inner height: 130 mm
Dimensions: (W x H x D) 330 x 190 x 325 mm
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
USB interface: yes
Voltage: 100 - 120 V
Frequency: 50/60 Hz
Power input: 1450 W
Power input standby: 3 W
Additional Information
| Brand | IKA |
|---|---|
| UNSPSC | 41103707 |
