Mfg Part Number
25006052

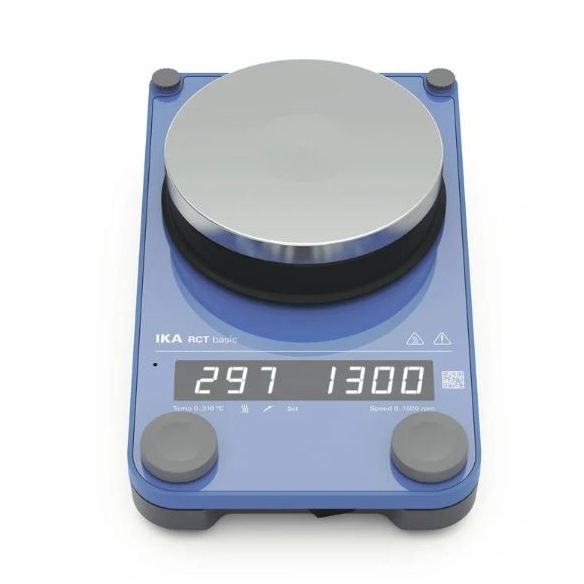

IKA 25006052 Hot Plate Stirrer, RCT basic, 50 - 1500 rpm, 115 V, 50/60 Hz
Quick Overview
Speed range: 50 - 1500 rpm
Voltage: 115
Frequency: 50/60Hz
Stirring quantity max. per stirring position (H2O): 20 l
LED
$1,196.82
Order will ship within 1-3 business days
RCT basic is suitable for stirring tasks up to 20 l (H2O) and reaches a hotplate temperature of up to 310°C. With the connection option for an external temperature sensor (PT 1000.60 included in delivery), the temperature can be measured and controlled directly in the reaction medium.
Technical Data
Number of stirring positions: 1
Stirring quantity max. per stirring position (H2O): 20 l
Motor rating output: 9 W
Direction of rotation: right
Speed display set-value: LED
Speed display actual-value: LED
Speed adjustment: Turning knob
Speed range: 50 - 1500 rpm
Setting accuracy speed: 10 rpm
Stirring bar length: 20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) +13 K
Heat output: 600 W
Temperature display set-value: LED
Temperature display actual-value: LED
Temperature unit: °C
Heating temperature range: Room temp. + device self heating - 310 °C
Heat control: Turning knob
Temperature setting range: 0 - 310 °C
Temperature setting resolution of heating plate: 1 K
Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D6
Heating rate medium: 6.5 K/min
Temperature setting resolution of medium: 1 K
Adjustable safety circuit: 50 - 360 °C
Set-up plate material: Aluminum alloy
Set-up plate dimensions: Ø 135 mm
Sensor in medium detection (Error 5): yes
Temperature measure range PT1000: -20 - 310 °C
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C): ±2 %
Heating rate (1l H2O in H1500): 6.5 K/min
Heat control accuracy of heating plate (at 100°C): ±5 K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±1 K
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.2 K
Dimensions (W x H x D): 160 x 85 x 270 mm
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 42
RS 232 interface: yes
USB interface: yes
Voltage: 115 V
Frequency: 50/60 Hz
Power input: 650 W
Power input standby: 1.6 W
| Brand | IKA |
|---|---|
| UNSPSC | 41102423 |
