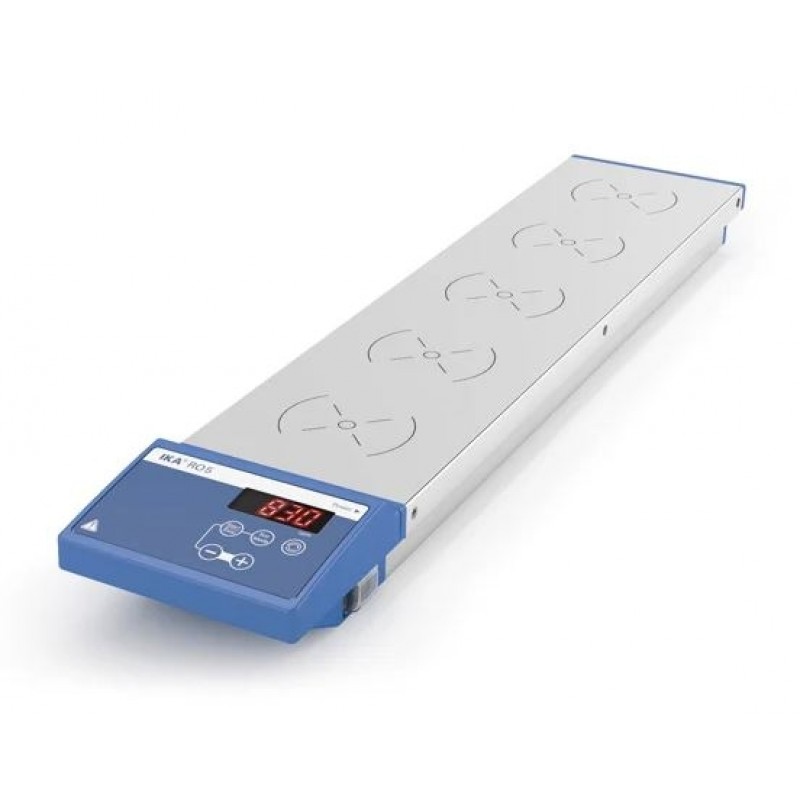

IKA 3690500 RO 5 Magnetic stirrer w/o heating, 5 positions, 50/60 Hz

5-position digital magnetic stirrer without heating, designed for synchronous stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. Speed remains constant, even when load changes. The closed and compact design allows easy cleaning and protects the equipment against the penetration of liquids. Additionally, a removable transparent anti-slip mat is included.

Adjustable reverse operation
Wear free magnetic coils
Error code display
Easy operation with touch keypad
Suitable for continuous operation
Speed range: 0 - 1200 rpm

Technical Data
Stirring position distance: 90 mm
Speed deviation of individual stirring positions: 0 %
Stirring quantity max. per stirring position (H2O): 0.4 l
Speed adjustment: 10 RPM Steps
Stirring bar length: 25 - 30 mm
Set-up plate material: stainless steel 1.4301
Set-up plate dimensions: 120 x 470 mm
Dimensions (W x H x D): 120 x 60 x 570 mm
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 40
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 13 W
DC Voltage: 24 V=
Current consumption: 500 mA
