Mfg Part Number

3690601

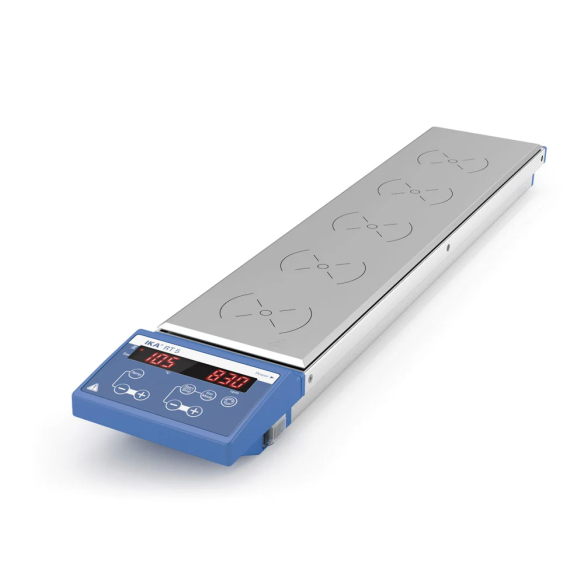

IKA 3690601 RT 5 Magnetic Hotplate Stirrer, 0 - 1000 RPM, Analog Control, 115V

IKA

Be the first to review this product

Quick Overview

5 Place Magnetic Hotplate Stirrer Digital Display Overall Dimensions:300 x 105 x 415 mm Max Stir Volume 0.4L

$3,169.39

Order will ship within 1-3 business days

Description

This 5 position digital magnetic hotplate from IKA provides consistent stirring in all positions for repeatable results in the lab. The surface temperature can be adjusted to temperatures up to 120C and the speed can be adjusted in 10 rpm step from 0 to 1000 rpm. Each stirring position can handle a load of 0.4L of water per position. The recommended minimum stir bar length is 25 mm and the recommended max stir bar length is 30 mm. Each stirring position is 90 mm apart while the dimensions of the plate are 110 x 495 mm. The dimensions of the entire unit are 120 x 60 x 610 mm. This product is designed for synchronous heating and stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. The surface temperature is infinitely adjustable up to 120 °C, producing a maximum medium temperature of 70 °C (depending on the used vessel). Speed remains constant, even when load changes. Other features include: Homogeneous temperature distribution across the heating plate Adjustable reverse operation Eco-mode for a low self-warming of the surface Wear free magnetic coils Error code display Easy operation with touch keypad Suitable for continuous operation Speed range: 0 - 1000 rpm This hotplate stirrer comes with a 2 year warranty period. The warranty does not cover worn out parts, nor does it apply to fault resulting from improper use.

Specifications

More Information
Brand	IKA
UNSPSC	41102423
Type of Hotplate	Hotplate Stirrers
Plate Material	Aluminum
Certification	IP 40
Plate Dimensions	110 x 495 mm
Control Type	Analog
Stirrer Volume	0.4 L
Power	115V
Unit Dimensions	120 x 60 x 610 mm
