Ohaus FC5816 Mid-Volume, FRONTIER™ 5000 SERIES MULTI PRO, 30314817, Cell Culture Bundle, Non-Refrigerated, Includes 30314820 (4 × 250mL Swing- Out Rotor), 30314913 (7 × 15mL bucket), and 30314906 (3 × 50mL bucket)
The Frontier FC5816 is a high-capacity, non-refrigerated universal centrifuge engineered for high-throughput laboratory operation. The Frontier 5000 line prioritizes reliability and precision, delivering the build quality and service longevity that research and clinical laboratories depend on.
Complete Cell Culture Centrifugation Bundle
This comprehensive bundle features the [Ohaus Frontier 5516 Multi Pro Centrifuge](https://www.sycamorelifesciences.com/ohaus-fc5816-mid-volume-frontiertm-5000-series-multi-pro-30314817-cell-culture-bundle-non-refrigerated-includes-30314820-4-250ml-swing-out-rotor-30314913-7-15ml-bucket-and-30314906-3-50ml-bucket.html) paired with a high-capacity swing-out rotor and specialized buckets. Designed for mid-volume cell culture applications, this package provides a ready-to-use solution for processing 15mL and 50mL conical tubes in a single benchtop unit.
Featuring an intuitive interface with a backlit Liquid Crystal Display (LCD), automatic rotor identification, and a maintenance-free induction drive—this multi-purpose centrifuge is a versatile essential. The unit features a corrosion-resistant stainless steel chamber and robust safety features suitable for high-demand lab environments.

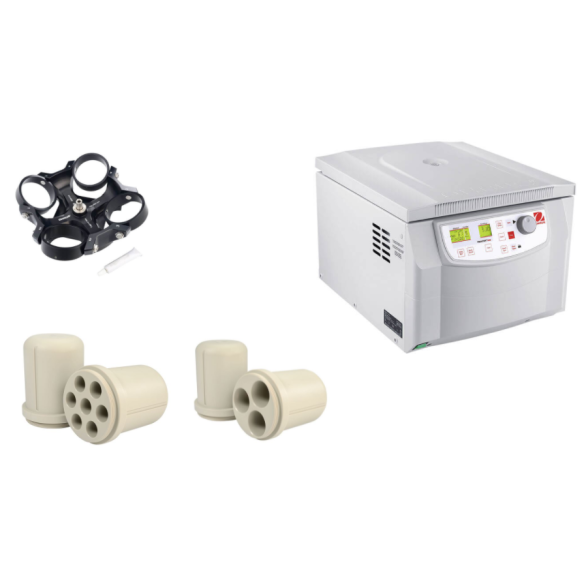

- Bundle Includes: The air-cooled FC5816 unit, a 4x250mL Swing-Out Rotor (30314820), 15mL buckets (30314913), and 50mL buckets (30314906).
- High-speed performance with 99 personal program functions for streamlined workflows.
- Ideal for Cell Harvesting, Protein Separation, and General Sample Preparation.
- Supports high-volume clinical diagnostics and blood sample processing.
Choosing the Right Model
The Frontier series offers four distinct designs: Multi Pro, Multi, Micro, and Mini. The FC5816 is the flagship air-cooled "Multi Pro" model, offering elite performance up to 15,000 rpm and a maximum capacity of 6 x 250 ml across 12 compatible rotor types.
Size and Application
The FC5816 provides the volume necessary for large-scale samples in an air-cooled format. It is optimized for universal laboratory applications where temperature control below ambient is not required, featuring a robust build for high-throughput environments.
Rotor Selection & Compatibility
This bundle is specifically equipped with the (30314820) 4 × 250mL Swing-Out Rotor and versatile buckets for common conical tubes. For future versatility, the FC5816 is compatible with a wide range of Ohaus accessories:
- Angle 4 x 85ml RB ID Hi
- Angle 6 x 250 ml FB ID
- Angle 44 x 1.5 / 2.0 ml ID V2
- Angle 30 x 15 ml RB/FA ID
- Angle 6 x 50 ml RB ID Hi
- Angle 24x1.5/2.0ml ID BIOSEALS V1
- Swing out 4 x 250 ml ID (Included)
- Swing out 2 x 3MTP ID
Making Your Decision
- Cell Culture Ready: This bundle eliminates the need to source individual buckets or rotors, providing immediate support for 15mL and 50mL protocols.
- Flexible Throughput: The swing-out design is ideal for cell culture workflows requiring horizontal separation and clear pellet formation.
- Verify that the maximum RCF of 21,379 x g meets your laboratory's separation requirements.
- Review the 99 program memories to ensure it supports your lab's frequent, standardized protocols.
| Speed Range | 200 rpm – 15,000 rpm |
|---|---|
| Maximum Relative Centrifugal Force | 21,379 x g |
| Maximum Capacity (Unit) | 6 x 250 ml |
| Dimensions (L x H x W) | 21.18 in x 13.94 in x 17.56 in (538 mm x 354 mm x 446 mm) |
| Net Weight | 115 lb (52 kg) |
| Power / Consumption | 120V AC Power (Included) / 520 W |
| Rotor Included in Bundle | (30314820) Swing out 4x250ml ID |
| Buckets Included | (30314913) 7 x 15ml & (30314906) 3 x 50ml |
| Rotor Recognition Method | Auto |
| Brand | Ohaus |
|---|---|
| UNSPSC | 41121703 |
| Accessory Type | Rotor Kit |
| Product Type | Centrifuge |
| Centrifuge Type | Centrifuge |
| Dimensions | 21.18 in x 13.94 in x 17.56 in (538 mm x 354 mm x 446 mm) (LxHxW) |
| Maximum RCF x g | 21379 x g |
| Maximum RPM | 15000 RPM |
| Minimum RPM | 200 RPM |
| Rotor Capacity | 4 x 250 ml |
| Rotor Places | 4-Place |
| Rotor Type | Swing-Out Rotor |
